Vortec 4200 to Chrysler/Dodge/Ram V8 (Hemi) 8HP70 and 8HP90 Transmission Adapter

Product Info

Please Note, This is a Pre-Order sale! Due to a huge volume of sales and race prep, Adapters will be machined and available after the Atlas Nationals (Late August)

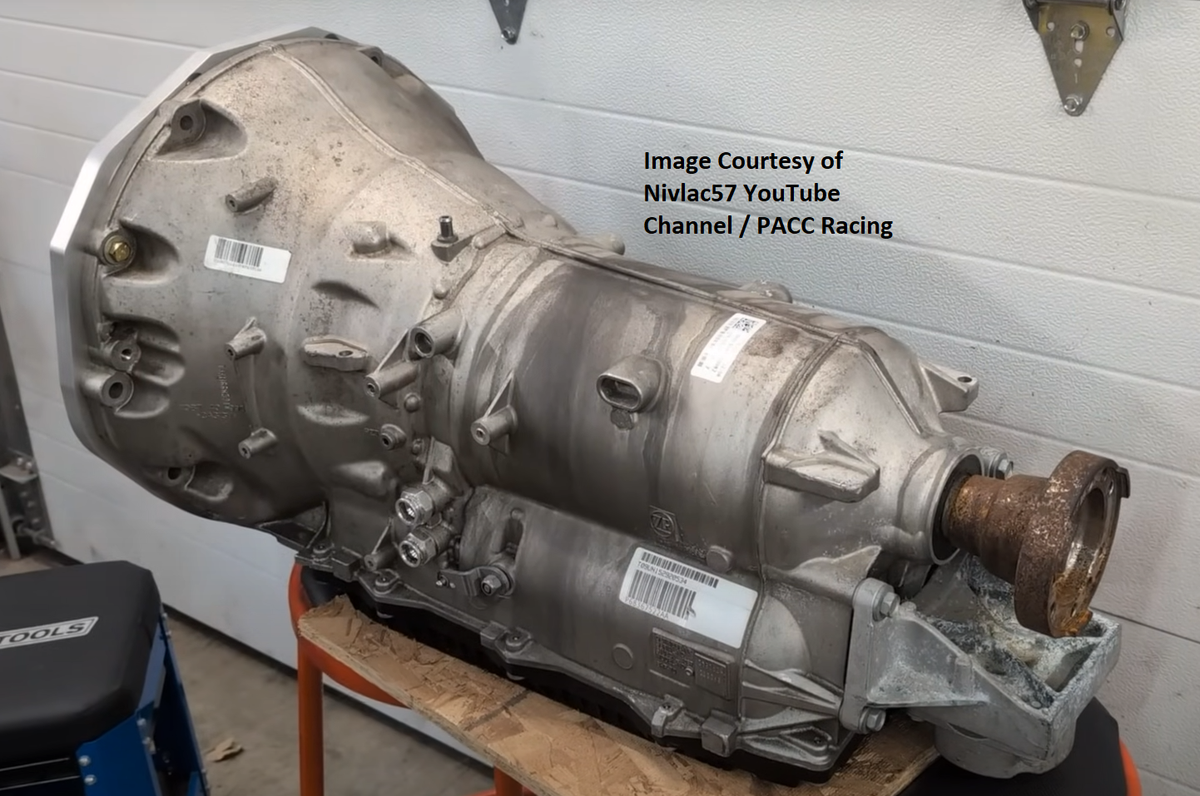

Introducing the new 8HP70 and 8HP90 Hemi V8 transmission adapter! (This will not fit the 3.6 V6, Eco Diesel, or Other non-Hemi transmissions. (Other future 8HP adapters will follow if interest shows.)

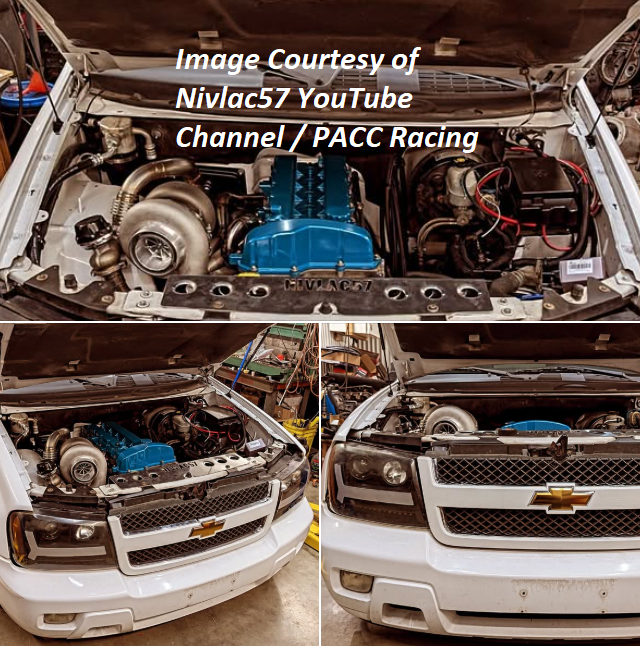

As seen on Nivlac57's awesome Trailblazer build, Atlas Industries has the exclusive rights to this adapter design. This was designed, tested, and heavily proven by Nivlac57 and we are proud to partner with him to offer such an awesome product. https://www.facebook.com/share/r/12KtQpLBFzN/

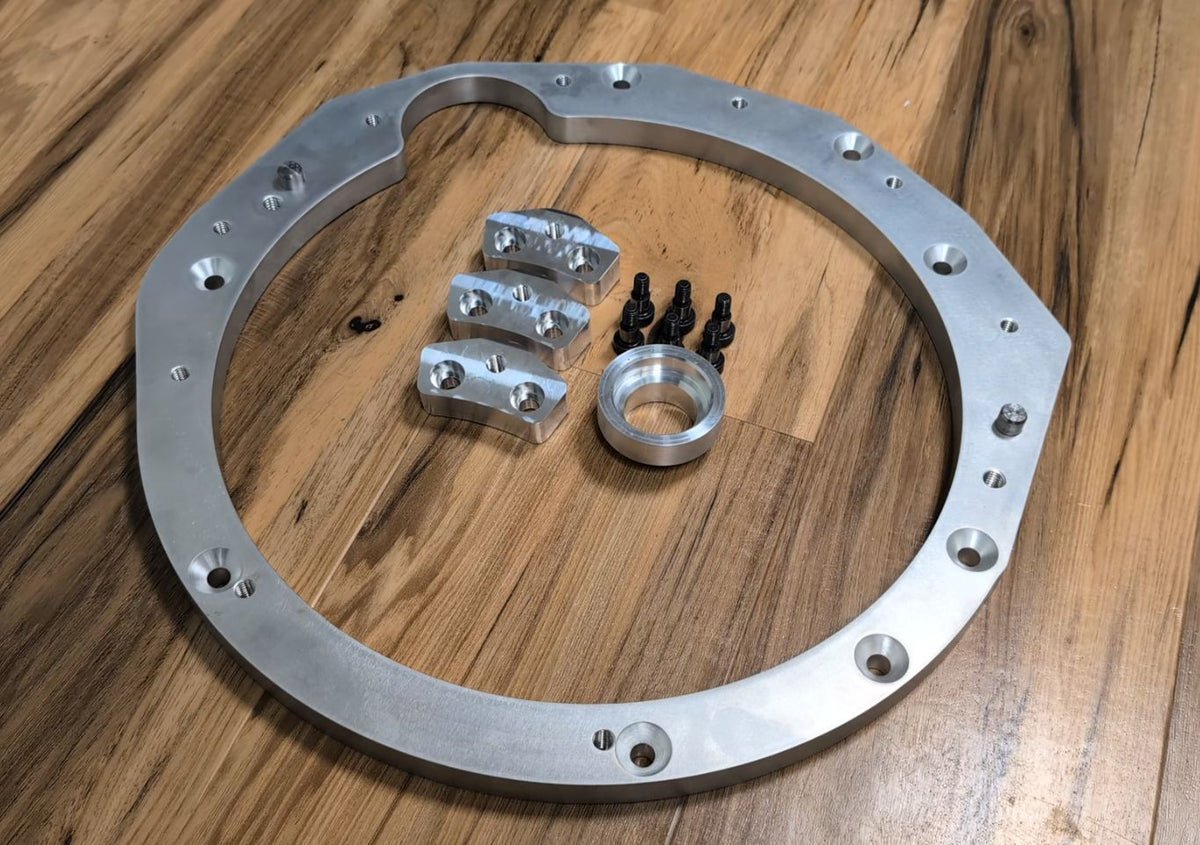

• Machined in the USA of thick 7075-T6 Aluminum for weight reduction and strength. There is not excess material here that is not needed. 7075-T6 Aluminum has a higher tensile strength and hardness than mild steel, but is almost half the weight.
• To ensure no pulled threads, all bolt holes are machined to tight tolerances. The threads were tested multiple times to a torque of 100 ft-lbs with no deformation (factory torque is 40 ft-lbs)
• Locating dowels are precision ground for a precise fit.
• (Please note, due to crankshaft stick-out length differences, this adapter Will Not fit the Atlas 4 and 5 cylinder engines.)

I am very proud to offer this and stand behind my work: There is a lifetime warranty to the original purchaser on any pulled threads due to material failure or bending when torqued to factory specifications.
