Vortec 4200 Lightweight Chromoly Race Flywheel

Product Info

Current Batch is sold out. This is a Pre-Order for the next Batch. Price will increase to $415 on October 31st!

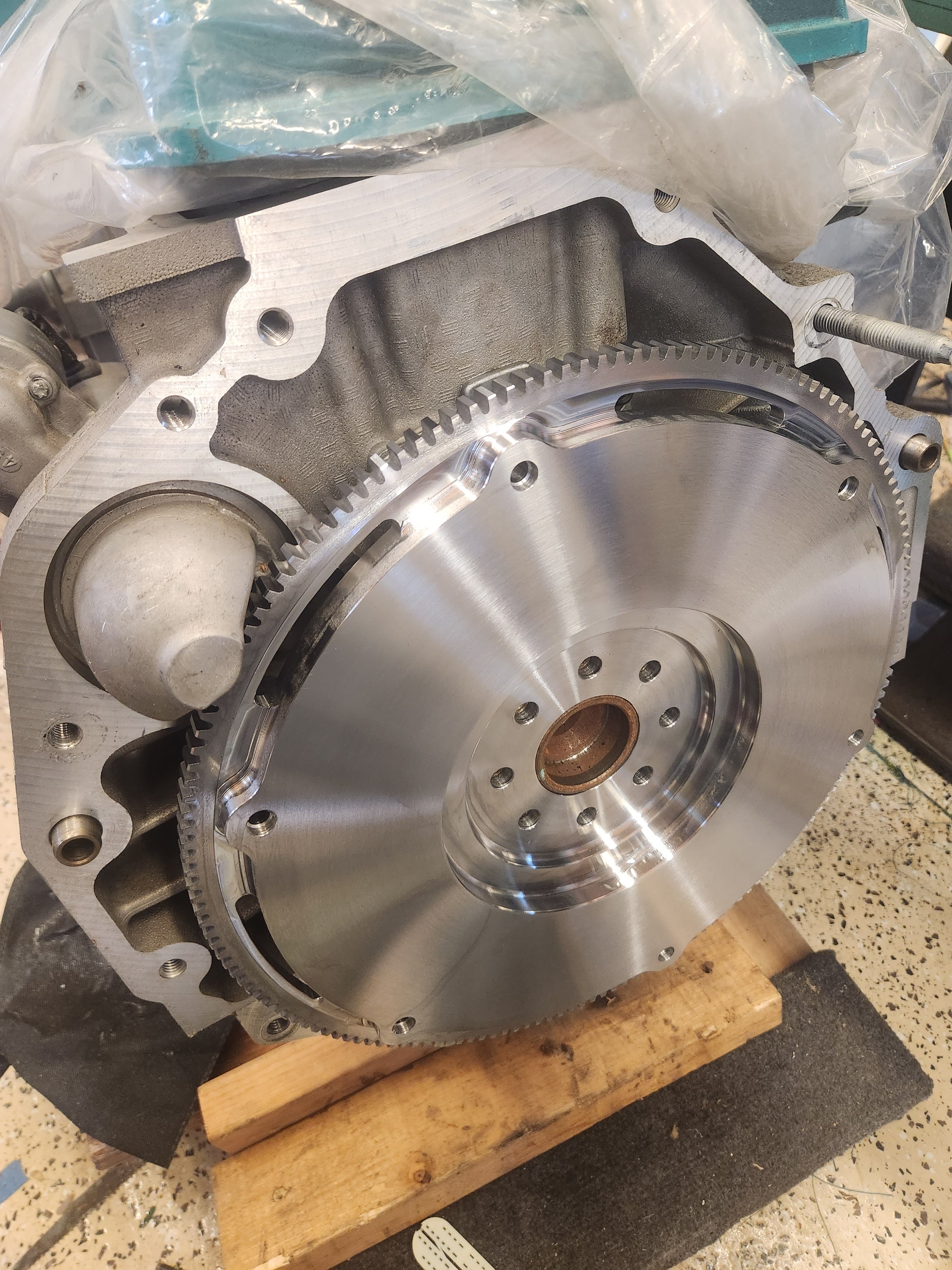

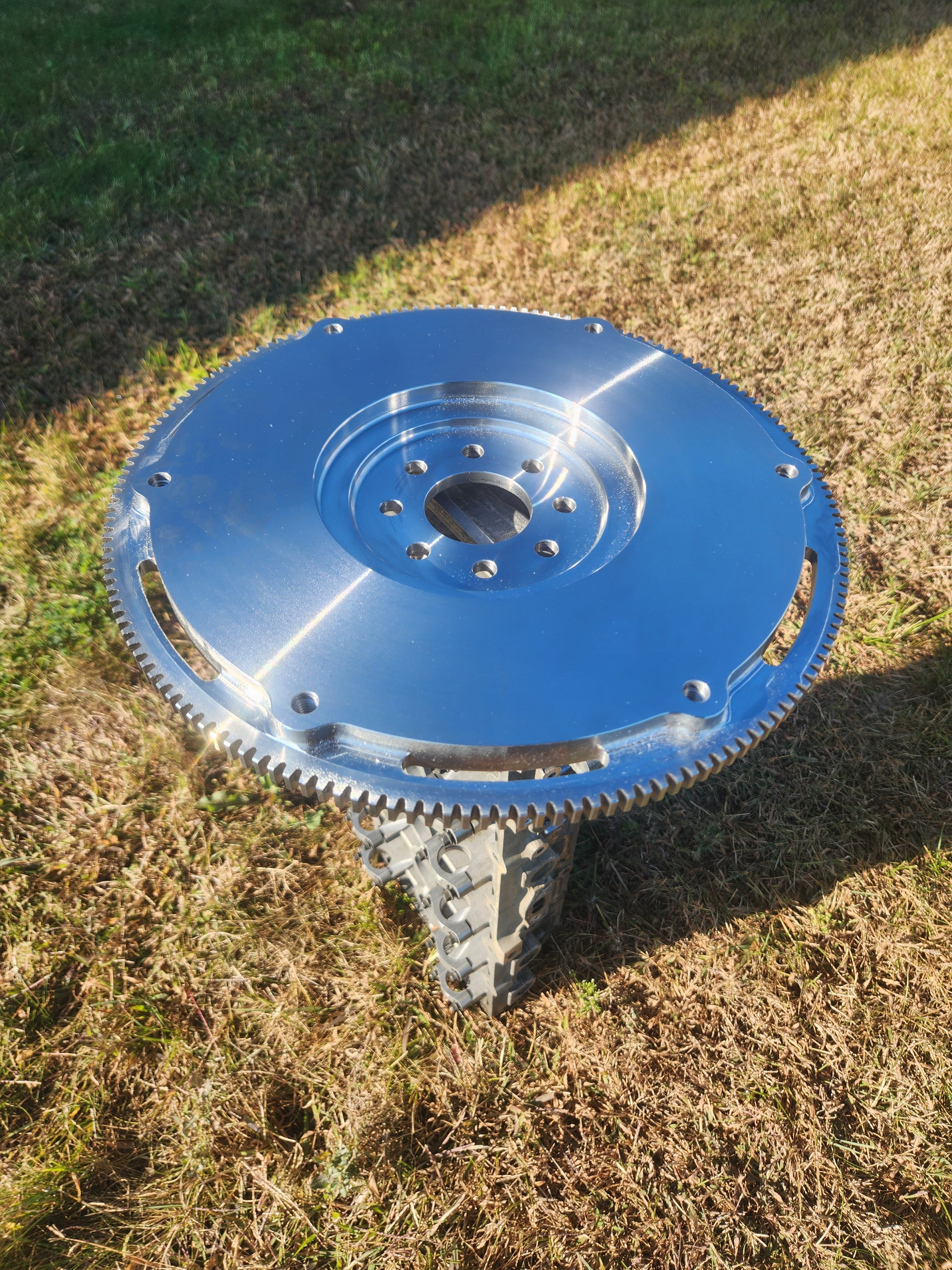

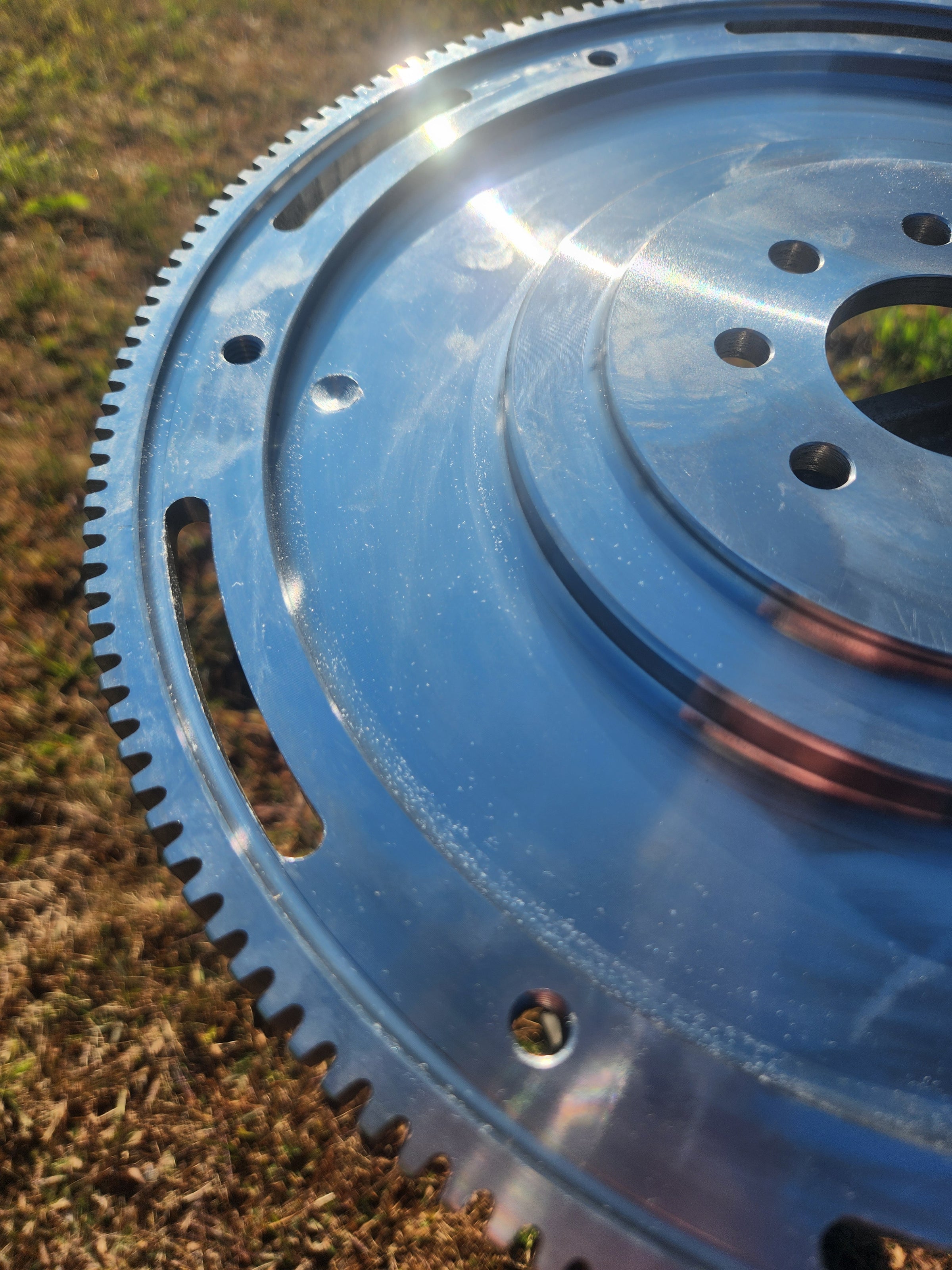

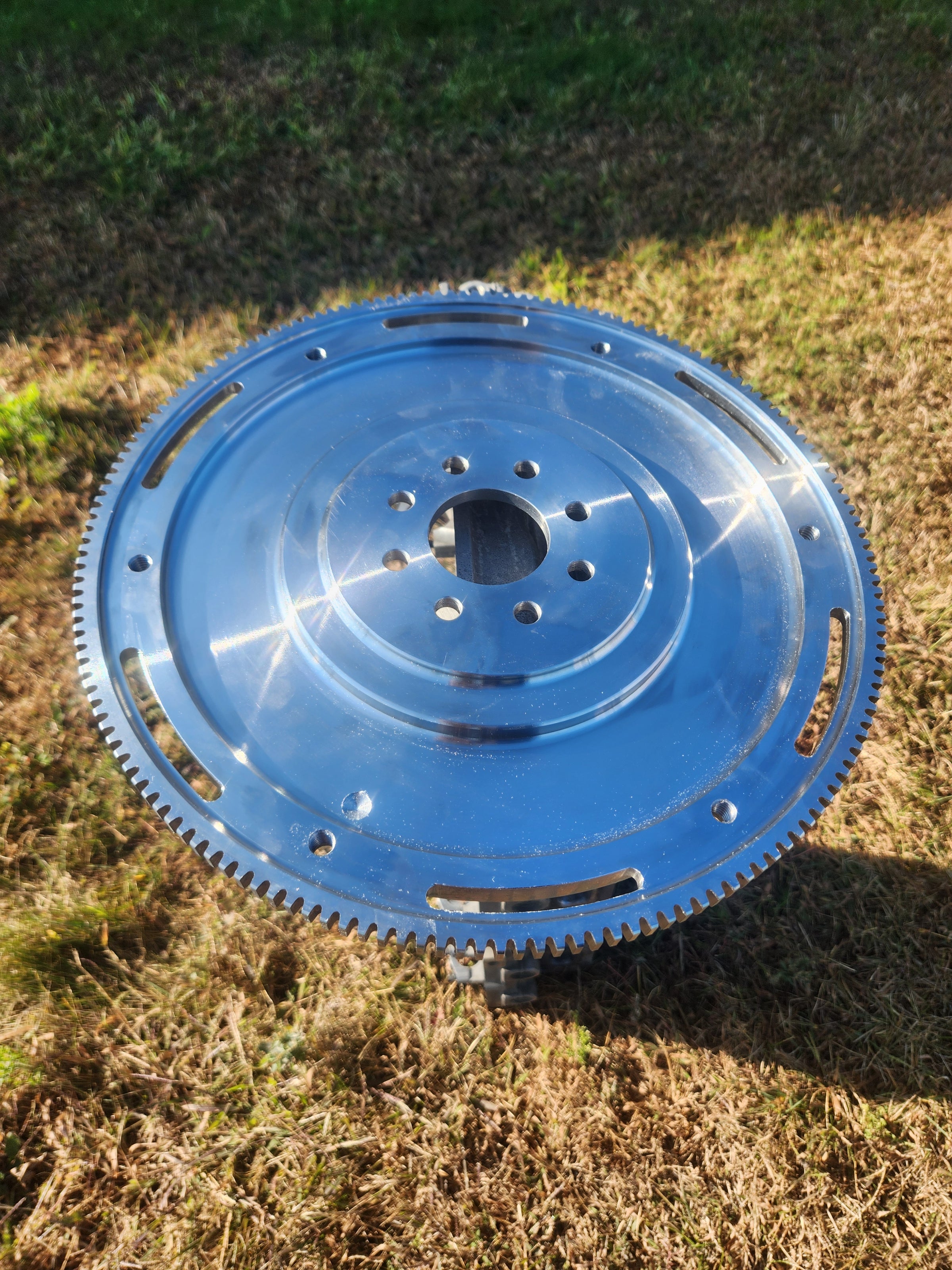

Take your manual 4200 build to the next level with our 17.2 Lb lightweight Chromoly 4140 flywheel. Designed for easy use with the T56, TR6060, AR5, R15x, AX-15, T56, NV3500, Muncie, and more. This flywheel is recomended for performance 4200 builds at or under about 4,000 lbs curb weight. Over this weight (or for an offroad build) we suggest a heavier flywheel which we will be debuting soon.

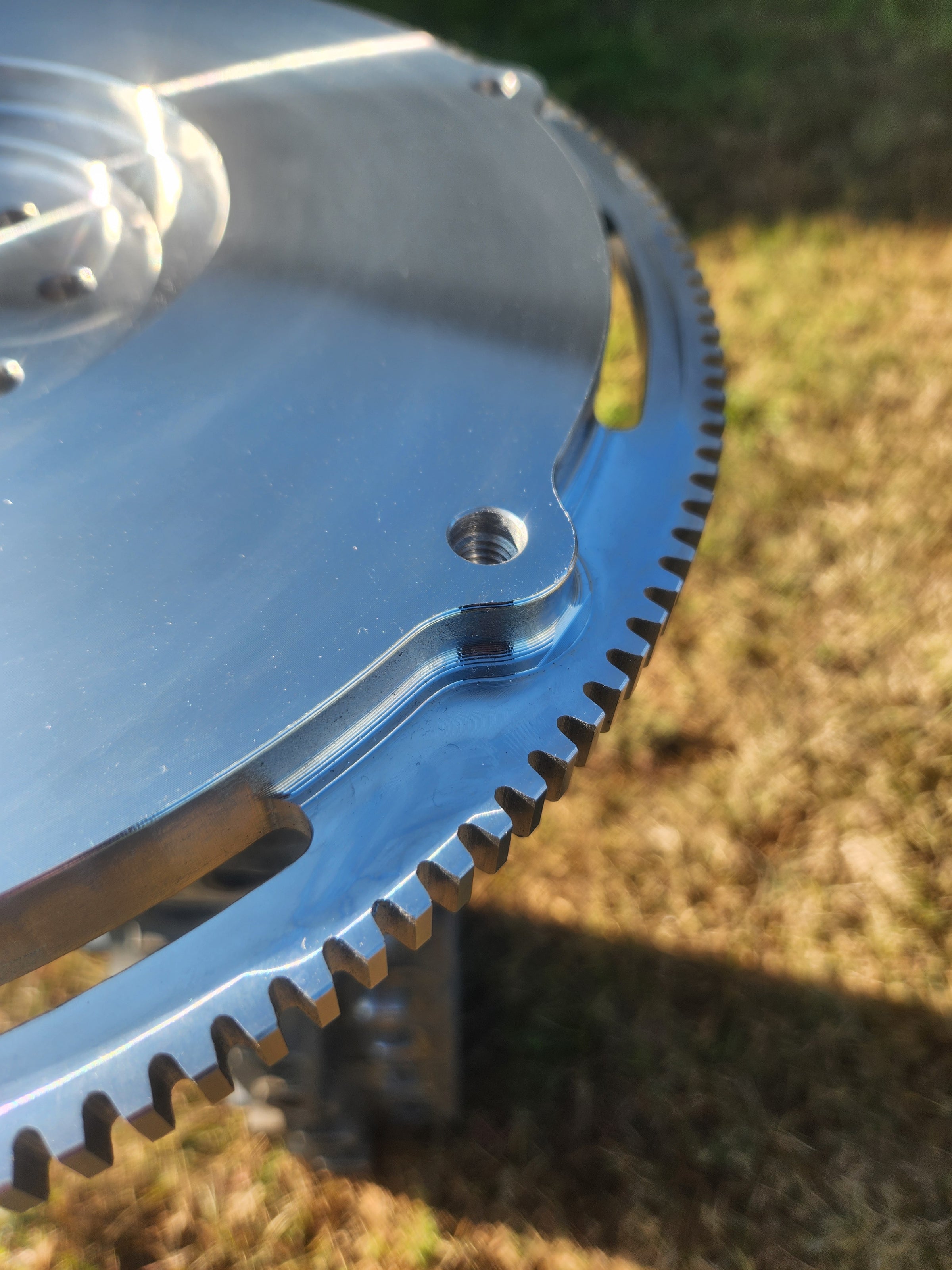

• 4140 Chromoly material is extremely strong and hard, allowing the ring gear to be machined as a part of the flywheel to save weight.

• Unlike other flywheels on the market, our flywheel offset from the crank face is specifically designed to not require a throwout bearing spacer when used with the common AR5 transmission swap. Other transmissions may still require a spacer, please contact us when you order so the correct spacer (if needed) can be supplied in the box.
• Dynamically balanced, ready to use out of the box and rated to 9,000 RPM.
• Under certification for SFI approval, but please be aware these are currently sold non certified. The SFI process is primarily a mafia style cash grab which requires paying the SFI institute money for each sticker they provide for your parts. Once these are certified, the cost will go up.

• Please note, customer must purchase flywheel and pressure plate bolts. Suggested use of ARP Flywheel bolts: 102-2803 for 2003-2009 4200 engines (2002 was a different M10x1.5 that I don't have an ARP part number for)
• ARP Pressure plate bolts: 130-2201
• You will want a clutch kit for a 10.5" (sometimes also listed as 10.4") SBC 350/305 with either a 26 spline or 10 spline to match your transmission. If you have any questions on a clutch kit for compatability, please let us know.
• For any transmission which does not already have an an Atlas bellhousing pattern (AR5) you will need to use a bellhousing adapater. https://atlasinds.com/collections/transmission/products/atlas-4-5-6-cyl-2800-4200-to-sbc-ls-and-bop-bellhousing-adapter

These flywheels are designed from scratch here at Atlas Industries using actual prototype Vortec 4200 manual parts, CAD/CMM work, and good old hands on testing.
